Key takeaway
Choose the migration path from the installed asset value, fiber utilization, loss budget, panel space, operating complexity, and target optics—not from fiber count alone.
Why Base-12 and Base-8 do not divide cleanly
Many installed MPO structured-cabling systems group fibers in sets of 12, while a number of parallel-optics interfaces use eight active fibers. Assigning one 12-fiber link directly to one 8-fiber interface leaves four positions unused. That is a utilization decision rather than a defect in the trunk.
The correct migration path depends on the value and condition of the installed plant, target optics, number of links, available panel space, optical loss budget, migration schedule, operational simplicity, and the organization’s ability to manage more than one cabling architecture.
Path 1: use eight positions and leave four dark
The simplest approach is to assign one 12-position interface to one 8-fiber application and leave four positions intentionally unused. It introduces no conversion device and can be attractive when only a small number of links must migrate or when minimizing extra mating interfaces is more important than maximizing fiber utilization.
The unused positions must be documented in the port schedule and polarity drawing. Otherwise, a future technician may assume that all 12 positions are available for a single application or try to reuse fibers without understanding the original map.
- Good fit for a small or urgent migration.
- Preserves the installed trunk with the fewest added components.
- Uses only eight of the twelve fibers in each assigned group.
- Requires disciplined documentation of the dark positions.
Path 2: convert two 12-fiber links into three 8-fiber links
A conversion cassette or harness can remap 24 input fibers from two 12-fiber links into three 8-fiber outputs. This uses all 24 fibers and can preserve a valuable Base-12 backbone during a staged migration.
The tradeoff is added mapping complexity. Depending on the design, conversion hardware can introduce more part numbers, mating interfaces, panel-space requirements, labeling rules, and spare inventory. The approved drawing must show the exact input-to-output positions, pinning, key orientation, and loss contribution of the selected structure.
Path 3: deploy native Base-8 cabling
Native Base-8 trunks and modules align the physical fiber grouping with 8-fiber parallel applications. This can simplify port mapping and avoid Base-12 conversion components in greenfield or major-refresh projects.
A native Base-8 design does not automatically make an installed Base-12 plant obsolete. The commercial decision must include stranded assets, coexistence, spare stocking, technician training, and the period during which both architectures will remain in service.
A simple capacity example
Consider twelve installed 12-fiber links, or 144 fibers in total. Direct 8-of-12 use supports twelve 8-fiber links and leaves 48 positions dark. Pairing the Base-12 links for full conversion creates six groups of 24 fibers; if each group produces three 8-fiber outputs, the same backbone supports eighteen 8-fiber links.
This calculation compares utilization only. It does not include conversion hardware cost, panel capacity, labor, insertion loss, availability, spare strategy, or transceiver-specific connectivity. Those factors can change the preferred design.
Migration decision checklist
Review the installed system and the operational plan before selecting a path.
- Inventory trunk fiber counts, connector types, pinning, polish, polarity, modules, labels, and test history.
- Identify the exact optics and active lane positions from equipment documentation.
- Draw every adapter, cassette, harness, patch cord, and mapping transformation.
- Calculate the complete channel loss budget using the approved component values.
- Compare panel space, part count, spare inventory, and service procedures.
- Define how Base-8 and Base-12 components will be identified during coexistence.
Validate one representative path before rollout
Before approving a large migration, build one complete representative link using the intended optics, trunks, conversion components, patch cords, and panel interfaces. Verify continuity, position mapping, insertion loss, and any additional project-specific acceptance requirements.
Keep the approved drawing and measured results as the deployment baseline. Product availability and optical limits for a particular conversion cassette or harness must be confirmed in the final quotation and approval drawing; this guide does not define a universal product configuration.

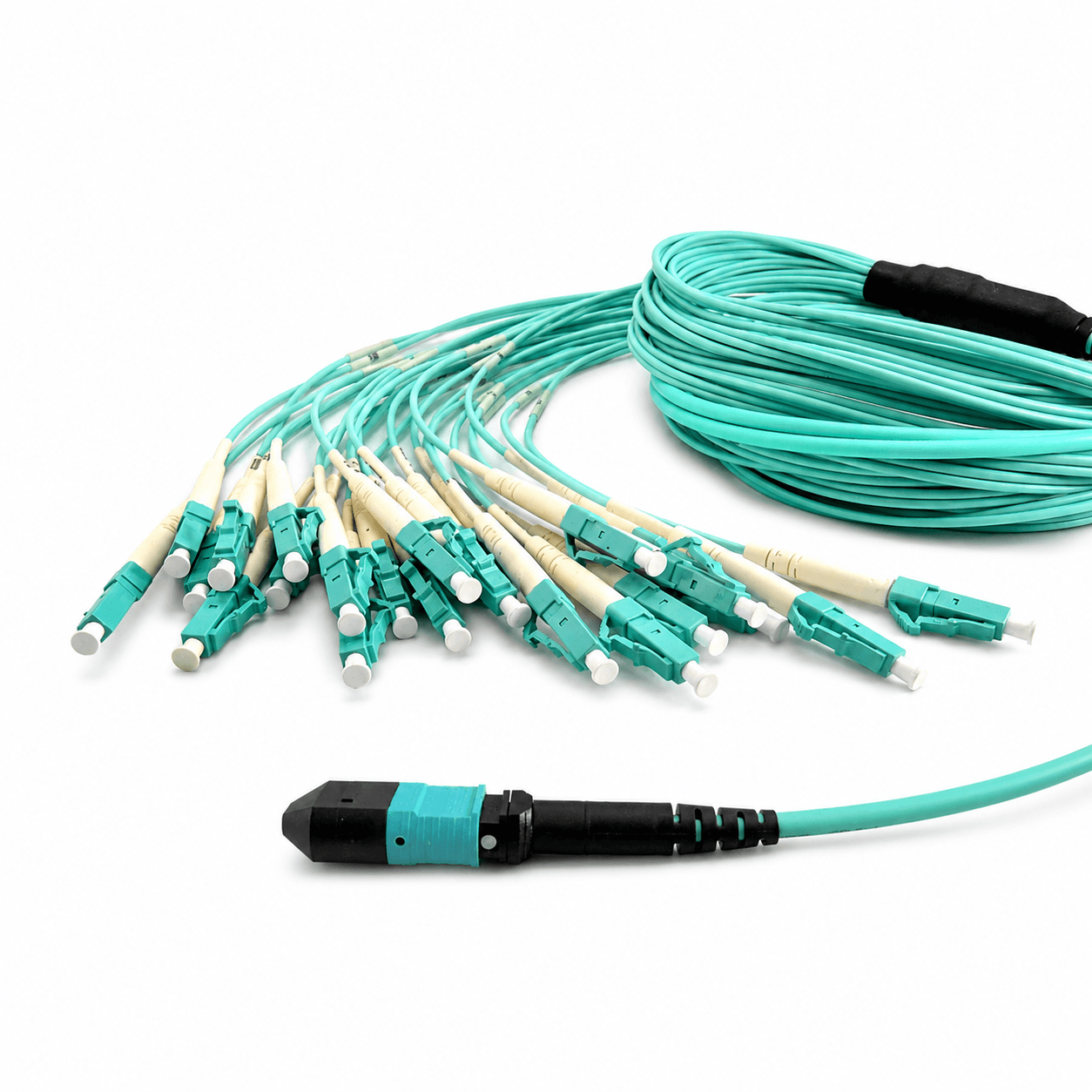

Related products
These product families are relevant when turning the article guidance into a defined cable configuration.
Frequently asked questions
Can a Base-12 trunk support an 8-fiber application?
Yes. Four positions may remain unused, or conversion hardware can remap two 12-fiber links into three 8-fiber outputs.
Does Base-8 always provide the lowest-cost migration?
No. The decision also depends on installed assets, conversion hardware, panel space, loss budget, spares, and operating procedures.
What should be tested before a migration rollout?
Validate continuity, fiber-position mapping, insertion loss, and the selected optics on one complete representative link.
Can Base-8 and Base-12 systems coexist?
Yes, provided labeling, inventory, mapping drawings, and technician procedures clearly distinguish the two architectures.
