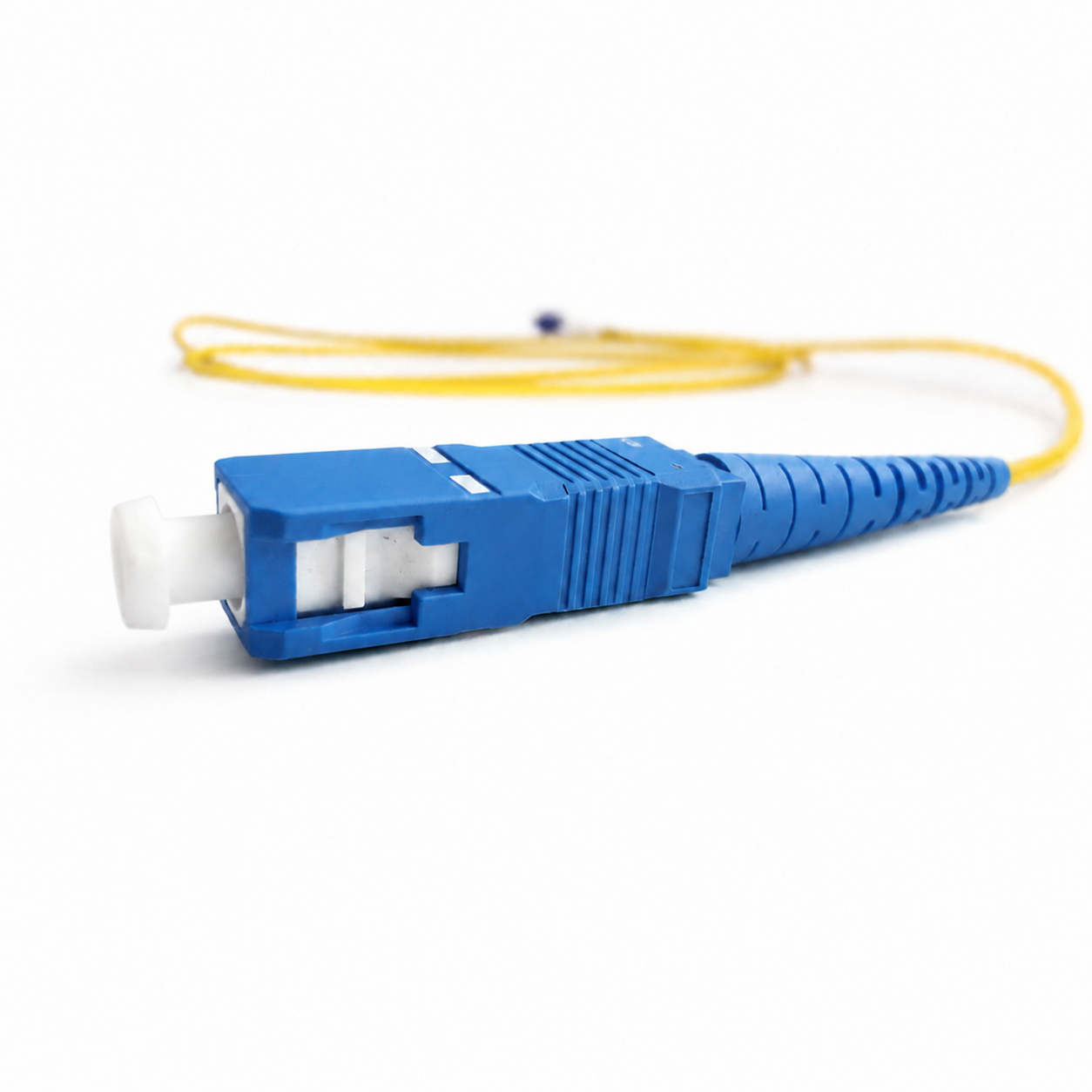

SC Fiber Optic Connector
SC fiber optic connectors use a keyed push-pull interface for repeatable connections in telecom access networks, FTTH distribution, CATV systems, and optical distribution frames. Single-mode UPC or APC and multimode UPC versions are available in simplex or duplex formats, with boots sized for buffered fiber and common cable diameters.
To identify the right model, confirm the assembly state, fiber and polish combination, connector format, cable or buffer diameter, boot style, and required quantity.
A fiber optic connector must match both the mating interface and the cable being terminated. Confirm connector family, fiber and polish, format, cable or buffer diameter, boot, assembly method, and inspection requirements together. Read the fiber optic connector buying guide
3-Year Warranty
Warranty support across our product range
100% Tested
Every finished product inspected before shipment
Test Reports
Order-specific test documentation available
Lead Time
Confirmed based on order quantity
Product Information
Performance Specifications
| Performance Specifications | Value |
|---|---|
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB UPC / ≥ 60 dB APC / ≥ 25 dB multimode |
| Operating Temperature | -40°C to +75°C |
| Durability | 500 mating cycles; optical change ≤ 0.20 dB |
Available Configurations
| Configuration | Available Options |
|---|---|
| Assembly State | Pre-Assembled • Unassembled |
| Fiber / Polish / Color | OS2 UPC (Blue) • OS2 APC (Green) • OM1 / OM2 UPC (Beige) • OM3 UPC (Aqua) • OM4 UPC (Heather Violet) • OM5 UPC (Lime Green) |
| Connector Format | Simplex • Duplex |
| Cable / Buffer Diameter | 0.9mm buffered fiber • 2.0mm cable • 3.0mm cable |
Not sure about every option? Select what you know and submit the RFQ. We’ll confirm the remaining details with you.
Need a configuration not listed? Share your specifications, drawing, or BOM in the RFQ form for review.
Standards & Compliance
ISO 9001:2015
RoHS
REACH / SVHC
UL Recognized Materials
