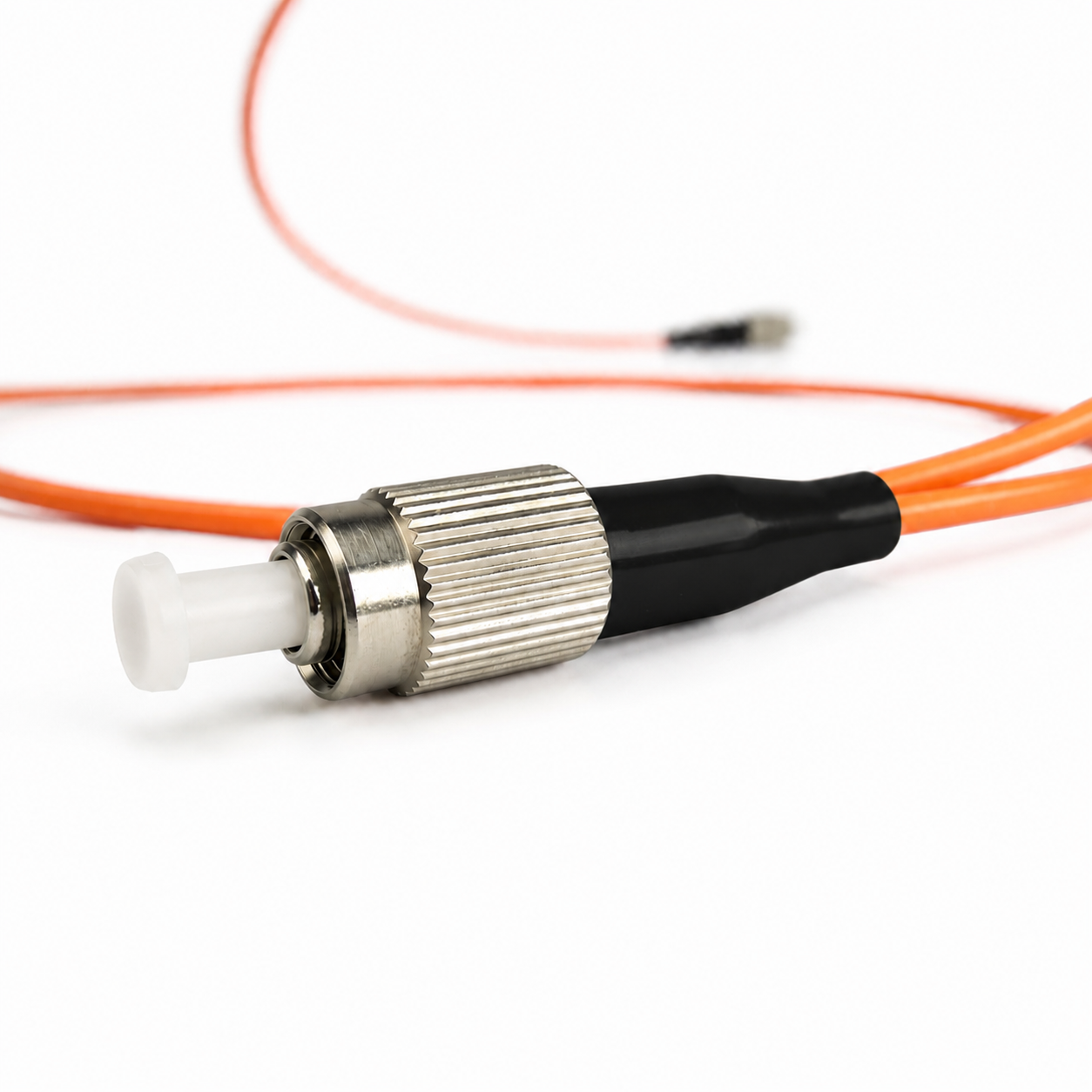

FC Fiber Optic Connector
FC fiber optic connectors use a keyed threaded coupling for secure, repeatable mating in telecom equipment, optical test systems, industrial networks, and measurement links. Single-mode UPC or APC and multimode UPC versions are available with narrow-key or wide-key interfaces and boots sized for buffered fiber and common cable diameters.
To identify the right model, confirm the assembly state, fiber and polish, key width, cable or buffer diameter, boot color, and required quantity.
A fiber optic connector must match both the mating interface and the cable being terminated. Confirm connector family, fiber and polish, format, cable or buffer diameter, boot, assembly method, and inspection requirements together. Read the fiber optic connector buying guide
3-Year Warranty
Warranty support across our product range
100% Tested
Every finished product inspected before shipment
Test Reports
Order-specific test documentation available
Lead Time
Confirmed based on order quantity
Product Information
Performance Specifications
| Performance Specifications | Value |
|---|---|
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB UPC / ≥ 60 dB APC / ≥ 25 dB multimode |
| Operating Temperature | -40°C to +75°C |
| Durability | 500 mating cycles; optical change ≤ 0.20 dB |
Available Configurations
| Configuration | Available Options |
|---|---|
| Assembly State | Pre-Assembled • Unassembled |
| Fiber / Polish | OS2 UPC • OS2 APC • OM1 / OM2 UPC • OM3 / OM4 UPC • OM5 UPC |
| Key Width | Narrow Key (2.0mm) • Wide Key (2.2mm) |
| Cable / Buffer Diameter | 0.9mm buffered fiber • 2.0mm cable • 3.0mm cable |
| Boot Color | Black • Green • Blue • Beige |
Not sure about every option? Select what you know and submit the RFQ. We’ll confirm the remaining details with you.
Need a configuration not listed? Share your specifications, drawing, or BOM in the RFQ form for review.
Standards & Compliance
ISO 9001:2015
RoHS
REACH / SVHC
UL Recognized Materials
